Application

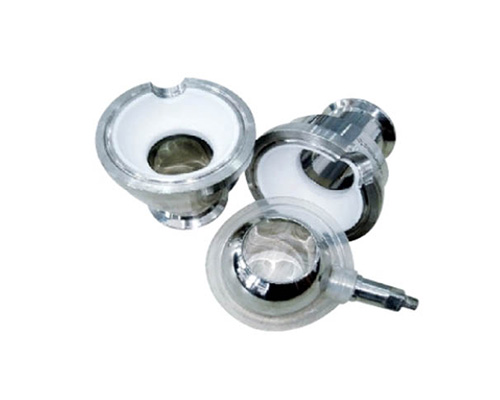

Clamp non-retention ball valve is in full  inclusive ball seat design that solves the problem of the liquid holdup of the valve cavity The ball valve is suitable for bio-pharmaceutical engineering.

Design Features

●Size：1/2″-3″,DN10-DN80
●Material：304/1.4301,316L/1.4404
●Surface：Ra≤0.5μm
●Temperature：-30℃ – 150℃
●Pressure：10bar
●Valve combination clamp connection
●Without professional tools that disassembling the valve
●Small operating torque
●Gaskets:FDA 177.2600
●Connection : Clamp, weld, thread, DIN、SMS、ISO、IDF、BPE、RJT
●No matter what the connection mode is, the valve body can be replaced without changing the length of valve
