OPERATING PRINCIPLE

• The filter basically consists of a filter body with an inlet and an outlet for the product.

• The screen is fixed inside the body. The screen retains all particles that are equal or larger than the size of screen opening.

APPLICATIONS

• Filters have a wide range of applications in the food-processing, cosmetics and some chemical industries as well as in auxiliary services of the pharmaceutical industry.

TECHNICAL SPECIFICATIONS•Filter body: AISI316L
•Gaskets: EPDM
•Internal surface finish: Ra<0.8μm •External surface finish: Mirror polish

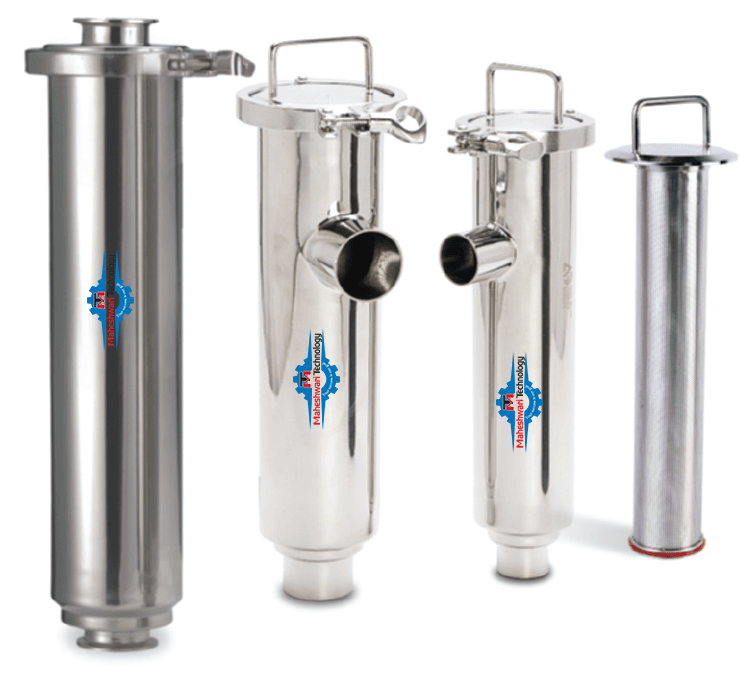

• • • DESIGNS & FEATURES

• • • • There are several configurations: Cleaning of the screen without disassembling the filter:

• • • • •Angular filter (82700): the inlet and the outlet form a right angle.

• • • • •Y filter (83700): the product enters and leaves the filter in the same direction.

• • • • • Cleaning of the screen disassembling the filter:

• • • • • •Straight filter (81700): the product enters and leaves the filter in the same direction.

• • • • • •Low pressure drops.
