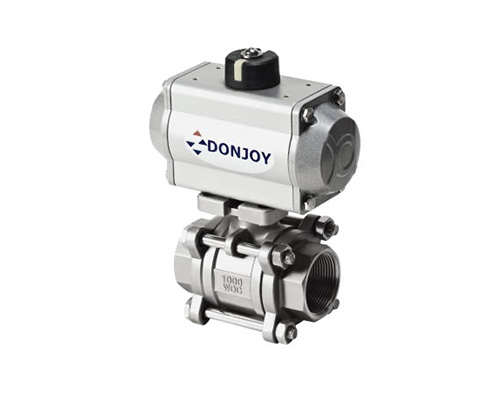

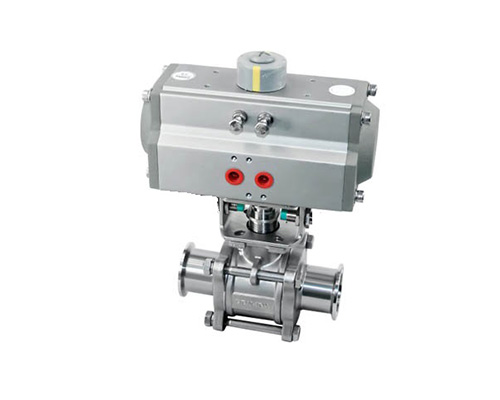

Horizontal pneumatic non-retention ball valve

Horizontal pneumatic non-retention ball valve is full inclusive ball seat design that solves the problem of the liquid holdup of the valve cavity. The ball valve is suitable for bio pharmaceutical engineering.
Stem seal in patent design and spring in compensation type design have advantage of long life, low torque, long-term use under high temperature 150 ℃

Design Features

Size： 1/2″-4″,DN10-DN100
Temperature：-30℃ – 150℃
pressure：10bar
Material：304/1.4301,316L/1.4404
Surface：Ra≤0.5μm
Gasket:FDA 177.1550
Connection : Clamp, weld, thread，DIN，SMS，ISO，IDF，BPE，RJT

Electric Actuator

Function: switch type, adjustment type, passive contact
Power supply: DC 24V AC 110V 220V
The opening and closing time: 10/S-100/S
Torque: 6N.M to 2000N.M
Protection: IP67 grade
Explosion-proof: EX DII BT4 (option)
